TP-Link TL-SG105 / switch 5x 10/100/1000Mbps/ kovový - GREEN
Kód: TL-SG105
Podrobný popis

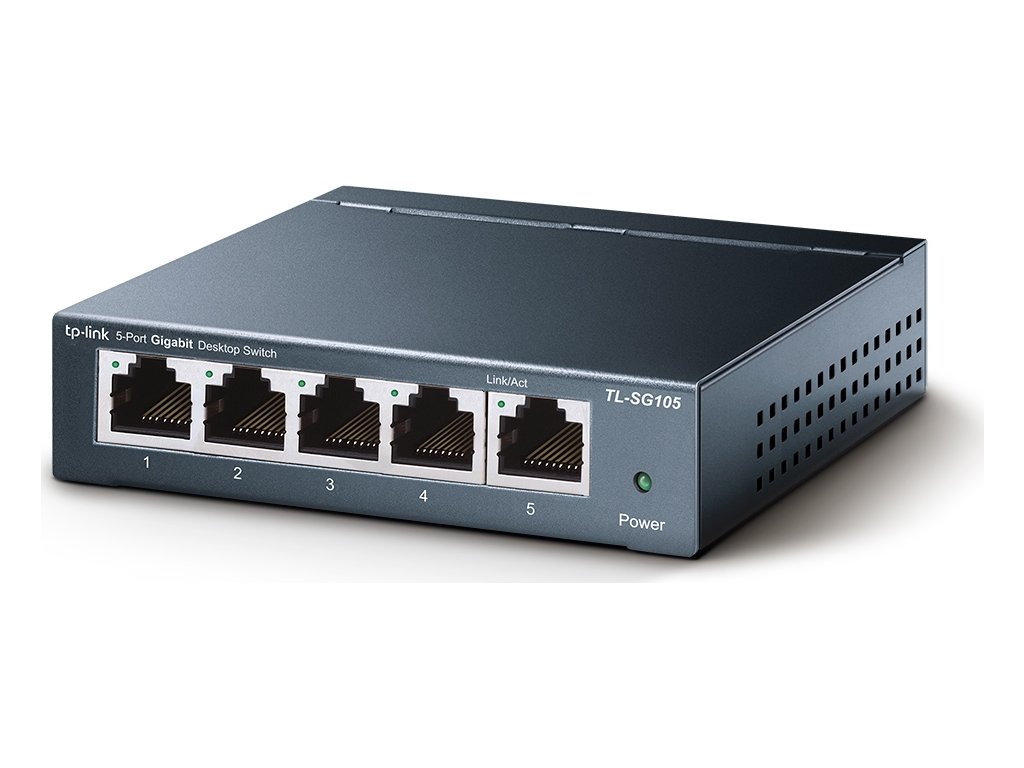

5-Port 10/100/1000Mbps Desktop Switch
OVERVIEW
The TP-LINK 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG105 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105 can save up to 65% of the power consumption, making it an eco-friendly solution for your home or office network.
FEATURES
• Innovative energy-efficient technology saves power up to 65%
• Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
• Steel design, desktop or wall-mounting design
• Supports QoS (IEEE 802.1p) and IGMP snooping function
• Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
• 9K Jumbo frame improves performance of large data transfers
• Auto-MDI/MDIX eliminates the need for crossover cables
• Supports MAC address auto-learning and auto-aging
• Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
• Fanless design ensures quiet operation
• Plug and Play design simplifies installation
HARDWARE FEATURES
Standards and Protocols
• IEEE 802.3/802.3u/ 802.3ab/ 802.3x
• CSMA/CD
Interface
• 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
External Power Supply
• 100-240VAC, 50/60Hz
Dimensions (W X D X H)
• 99.8 x 98 x 25 mm
Fan Quantity
• Fanless
LED Indicator
• System Power
• Link, Speed and activity indicators per port built into each RJ-45 port
SOFTWARE FEATURES
Advanced Features
• Green Technology, saving power up to 65%
• 802.3X Flow Control, supports QoS (IEEE802.1P), IGMP Snooping function
Transfer Method
• Store and Forward
OTHERS
Certification
• CE, FCC, RoHS
Package Contents
• 5-Port 10/100/1000Mbps Desktop Switch
• Power Adapter
• User Guide
System Requirements
• Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, Mac® OS, NetWare®, UNIX® or Linux.
Související odkazy
Dodatočné parametre
| Kategória: | Sieťové Prvky |
|---|---|
| Záruka: | 60 měsíců |
| Hmotnosť: | 0.468 kg |
| Barva: | černá |
| Bez ventilátorů: | Ano fanless |
| Délka záruky: | 60 měsíce |
| Délka záruky IČO: | 60 měsíce |
| Displej: | ne |
| Gigabit LAN: | Ano |
| Hmotnost: | 0.46800 kg |
| Homologace EN50155: | ne |
| IGMP: | Ano |
| Kapacita sběrnice: | 10 Gbps |
| LAN: | Ano |
| Management: | ne |
| Napájení zařízení: | externí adaptér |
| Podpora PoE: | ne |
| PoE vstup: | ne |
| PoE výstup: | ne |
| Použití v exteriéru: | ne |
| Použití v interiéru: | Ano |
| Provedení: | samostatně stojící |
| Provozní teplota max.: | 40 °C |
| Provozní teplota min.: | 0 °C |
| RJ-45 (počet): | 5 |
| Rozměry: | 100 × 98 × 25 mm |
| RS-232 port: | ne |
| Rychlost portů: | 1 Gb/s |
| Rychlost směrování: | 7,4 Mpps |
| Shoda: | CE, FCC, RoHS |
| Stohovatelnost: | ne |
| Upřesnění typu: | Switch |
| Vrstva OSI: | L2 |
| Vstupní napětí: | 5 V |
| Záruka: | 60 měsíců |
| Zpracováno: | Schváleno |
