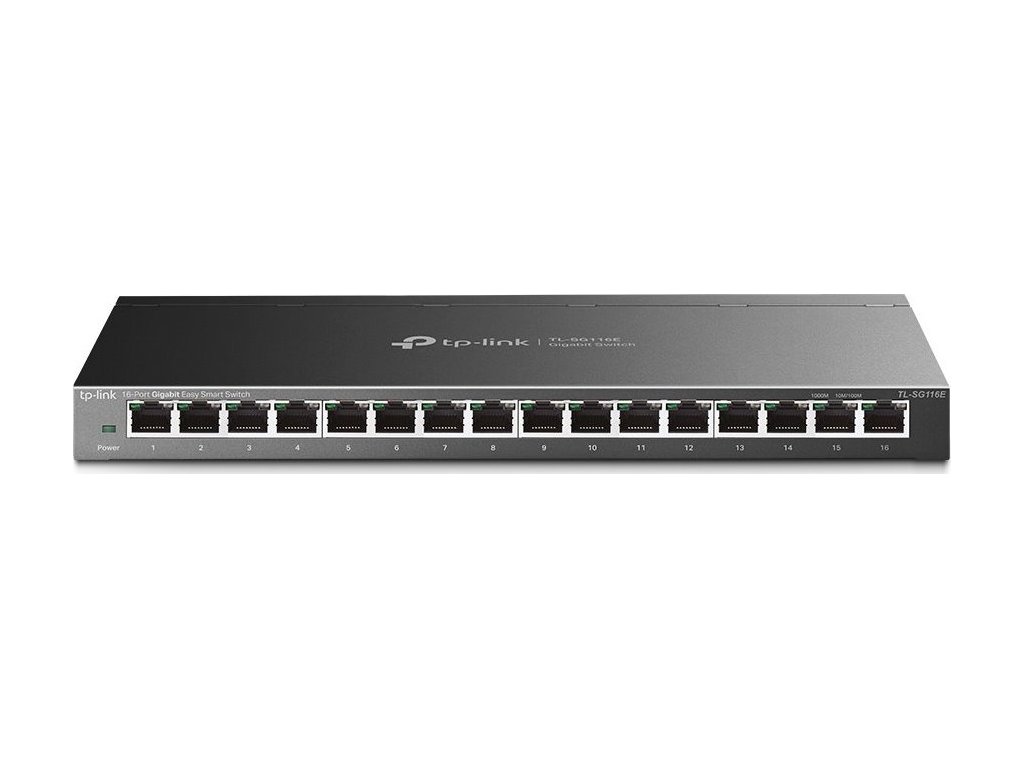

TP-Link TL-SG116E - 16-Port Gigabit Unmanaged Pro Switch
Kód: TL-SG116E
Podrobný popis
TL-SG116E

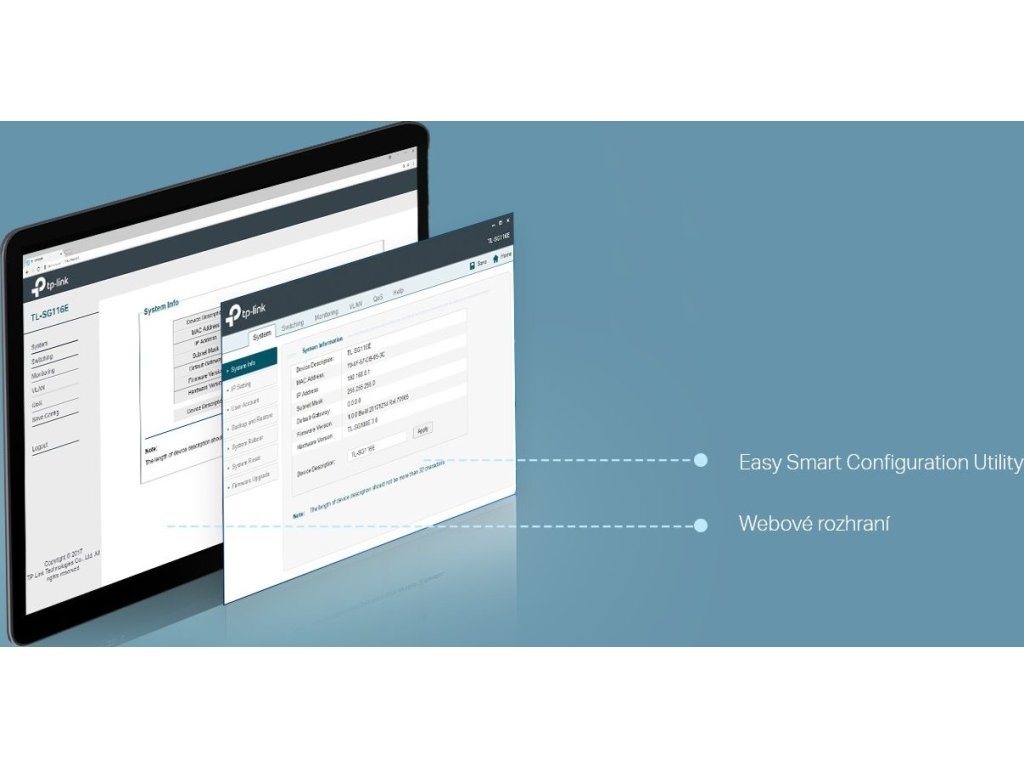

16-Port Gigabit Easy Smart Switch, 16 Gigabit RJ45 Ports, Desktop Steel Case, MTU/Port/Tag-based VLAN, QoS, IGMP Snooping, Web/Utility Management
The TL-SG116E Unmanaged Pro switch is an ideal upgrade on unmanaged switches, suited for home and small business networks. A plug-and-play design makes for easy deployment without the need for a technician, while a robust metal casing provides better protection for components. Equipped with intelligent management features like QoS, VLAN, IGMP Snooping and more, this switch is effective in both simple and more demanding network environments.
HARDWARE FEATURES
Standards and Protocols> IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface:
*16 10/100/1000Mbps RJ45 Ports
*AUTO Negotiation/AUTO MDI/MDIX
Network Media:
*10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
*EIA/TIA-568 100? STP (maximum 100m)
*100BASE-TX: UTP category 5, 5e cable (maximum 100m)
*EIA/TIA-568 100? STP (maximum 100m)
*1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
*EIA/TIA-568 100? STP (maximum 100m)
Fan Quantity: Fanless
Power Supply: External Power Adapter(Output: 9VDC/0.6A)
Dimensions ( W x D x H ): 11.3*4.4*1.0 in. (286*111.7*25.4 mm)
Max Power Consumption: 9.19W(220V/50Hz)
Max Heat Dissipation: 31.36BTU/h
PERFORMANCE
Switching Capacity: 32Gbps
Packet Forwarding Rate: 23.81Mpps
MAC Address Table: 8K
Packet Buffer Memory: 4.1Mb
Jumbo Frame: 9KB
SOFTWARE FEATURES
Quality of Service:
*Support Port-based/802.1p/DSCP priority
*Support 4 priority queues
*Rate Limit
*Storm Control
L2 Features:
*IGMP Snooping V1/V2/V3
*Static Link Aggregation
*Port Mirroring
*Cable Diagnostics
*Loop Prevention
VLAN:
*Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
*MTU/Port/Tag VLAN
Transmission Method: Store-And-Forward
OTHERS
Certification: FCC, CE, RoHS
Package Contents:
*TL-SG116E
*Power Cord
*Installation Guide
*Rubber Feet
System Requirements: Microsoft® Windows® for running Utility
Environment:
*Operating Temperature: 0?~40? (32?~104?)
*Storage Temperature: -40?~70? (-40?~158?)
*Operating Humidity: 10%~90% non-condensing
*Storage Humidity: 5%~90% non-condensing
Související odkazy
Dodatočné parametre
| Kategória: | Sieťové Prvky |
|---|---|
| Záruka: | 60 měsíců |
| Hmotnosť: | 0.822 kg |
| Barva: | černá |
| Bez ventilátorů: | Ano fanless |
| Délka záruky: | 60 měsíce |
| Délka záruky IČO: | 60 měsíce |
| Displej: | ne |
| Gigabit LAN: | Ano |
| Hmotnost: | 0.82200 kg |
| Homologace EN50155: | ne |
| IGMP: | Ano |
| Kapacita sběrnice: | 32 Gbps |
| Management: | ne |
| Napájení zařízení: | externí adaptér |
| Podpora IPv6: | ne |
| Podpora microSD karet: | ne |
| Podpora PoE: | ne |
| PoE vstup: | ne |
| PoE výstup: | ne |
| Použití v exteriéru: | ne |
| Provedení: | samostatně stojící |
| Provozní teplota max.: | 40 °C |
| Provozní teplota min.: | 0 °C |
| RJ-45 (počet): | 16 |
| Rozměry: | 286 × 111,7 × 25,4 mm |
| RS-232 port: | ne |
| Rychlost portů: | 1 Gb/s |
| Rychlost směrování: | 23,81 Mpps |
| Shoda: | CE, FCC |
| Stohovatelnost: | ne |
| Upřesnění typu: | Switch |
| Vrstva OSI: | L2 |
| Vstupní napětí: | 12 V |
| Záruka: | 60 měsíců |
| Zpracováno: | Schváleno |
